Patient Transfer Systems

Over 25 years ago AirPal-Patient Transfer Systems, Inc. was the first to offer an air assisted lateral transfer and positioning device to the Healthcare Industry. The AirPal Platform has an underside that is perforated for air release.

When connected to the Air-Pal Air Supply a constant flow of high volume low pressure air causes the Platform to inflate a semi-rigid surface for patient transfers or positioning. As air escapes out the perforations, a frictionless surface, literally a “cushion” of air, is formed upon which the patient is moved almost effortlessly.

The AirPal Air Supply has been tested to comply with the latest UL Standard (60601 -1)for Electrical Medical Devices. To comply with the UL Standard the AirPal Air Supply was tested while connected to an AirPal Platform with a simulated patient weight of 1200lbs.

In addition to the UL Certification, the AirPal Air Supply is also certified to CSA (601.1), and carries the CE Mark. The certifications ensure easy internal approvals for use in clinical environments.

The AirPal Air Supply is lightweight, compact and portable. It can be used independently or in conjunction with the AirPal Stand (AirPal’s mobility and storage solution). When used independent of the AirPal Stand -the AirPal Air Supply can be hung from the side of the bed or stretcher the patient has been transferred to, via the integrated hook. In this way the AirPal Air Supply can travel with the patient without the need to bring along an extra piece of equipment.

Specifications of the Air Power Supply for the Airpal Platform:

Dimensions:

Air Supply (Height and Diameter): H-11” X D-9”

Power Cord (Length):15ft.

Air Supply Hose (Length and Diameter): L-6ft. X D-1.75in.

Materials:

Filter Canister: Non Corrosive 304 Stainless Steel Alloy

Motor Enclosure: High Impact Molded Plastic

Air Supply Hose: Helix Reinforced PVC

Electrical:

Power: 220/240V 1200W

Switch:On/Off Green LED Power Indicator

Certifications: UL 60601-1, CSA 601.1, CE Mark

Power Cord: 16 AWG, 105° C, 300V, UL E67474, CSA LL39965

Plug: Hospital Grade Grounded 3 Prong, CSA 5-15P

Operation:

Filter: 2 Micron, Sock Type, Tension Mounted, Reusable

Air Flow: Approximately 3 psi/80 cfm

Inflation/Deflation:Approximately 5 sec./10 sec. (Depends on Volume Capacity of Connected AirPalPlatform)

User’s Manual: Laminated AirPal Patient Transfer System

User’s Manual Attached to Air Supply Handle

Weight:

Air Supply: 8.2lbs.

Air Supply w/Cord: 9.6lbs.

For carers of patients with mobility issues, helping these patients in and out of seats all day can become a strain, and can represent a risk of injury both for the carer and the patient. The Orbital Transfer Platform is designed to alleviate these issues, and make transferring to different seating positions more comfortable for the carer, and safer for the patient. Perfect for any patient who is weight bearing with good upper body strength, this platform pivots to make transferring from seat to seat easier and less dangerous than ever.

Ergonomically Correct

The Orbital Transfer Platform was made with both the patient and the carer in mind, to make both of their lives easier. This platform reduces strain on the carer, by providing them with an ergonomically correct working position, to lessen the back and joint pain often associated with supporting patients from dangerous or uncomfortable positions.

Easy Transfer Between Seats

This orbital transfer platform makes patient transfer from seat to seat both quick and simple, pivoting between sitting surfaces with ease. Turning is controlled and safe, as the platform is fitted with an accessible, hand operated locking device which enables the platform to turn and lock in 5 separate positions, to enhance positioning ability, and to maintain a constant turning speed for ensured control. Keep in mind, this platform is for changing seats only, and not for patient transport.

Peace of Mind for Patient

Patients will appreciate this device as much as carers, with the handle bar designed to surround them for increased support, and an added sense of security. Featuring multiple handholds with soft touch, latex free rubber grips, the patient will always feel both comfortable and supported. Adding an extra layer of peace of mind for the patient, a non-slip footplate offers secure footholds for the user, to ensure there are no accidents during transfer.

Sturdy and Reliable

Manufactured from sturdy, high tensile steel, the user can feel assured that this unit will stay working at its fullest capacity for as long as they need it to, and the peel proof powder coating will make sure that it stays looking at its professional best long into its use. Additionally, since this orbital transfer platform is fitted with 2 x 10cm raised rubber castors, this platform is very manoeuvrable, and with 3 side struts, secure, anti-tip operation is ensured.

Key Features

• Perfect for patient transfer from one seated position to another
• Suitable for patients with good upper body strength
• Pivots between sitting surfaces
• Ergonomic design for correct carer working position
• Handlebar surrounds patient for sense of security
• Multiple soft, latex free rubber grips for flexible, comfortable support
• Made from high tensile steel
• Peel-proof powder coating for longevity
• 2 x 10cm raised rubber castors for manoeuvrability
• 3 side struts to ensure secure, anti tip operation
• Locking device that can turn and lock in 5 positions for positioning
• Non-slip footplate for secure foothold
• Smooth, wipe-clean surfaces

Users of the MiniLift Standing Aids will know that they offer a completely unique and comfortable experience when it comes from helping patients up from seated positions. The CalfStrap Leg Support is an accessory that supports the back of the user's legs, providing an extra sense of security to nervous patients or those with particularly weak lower body strength.

Functional and Safe

The MiniLift Standing Aid is a functional and safe device that is extremely useful in raising users into a standing position. It gently moves the user forwards and upwards in a natural movement pattern, while simultaneously ensuring the user's balance and leg muscles are exercised.

Additional Security

After adjustment of the length to fit the user, the CalfStrap is very easily attached via clasps to the leg supports on the MiniLift.

Giving users an extra element of security, the anti-slip material on the inside of the CalfStrap makes sure it is effectively kept in place to support the user's legs, ensuring that they stay in place as they rise.

Care Instructions for the CalfStrap

The CalfStrap Leg Support is made from low-friction polyester, and can be machine washed at 60 - 85°C. Do not use rinsing aid. To prolong the service life of the product, avoid tumble-drying.

If your patient uses a thicker mattress, finding a base sheet that fits their bed while also preventing decubitis ulcers can be difficult. The Etac SatinSheet 2D Two Direction Maxi Base Sheet with Corner Straps is crafted with elasticated corner straps that fit easily to the mattress, making it an excellent choice for thicker mattresses. The sheet also facilitated smoother side-to-side turning in bed, making it an excellent choice for reducing the risk of pressure sores and ulcers.

Key Features and Benefits

• Designed with elasticated corner straps to fit easily to thicker mattresses
• Low-friction satin area in the centre of the sheet allows side-to-side movement
• Facilitates turning on the full length of the bed
• Ideal for improving independence in patients with limited mobility who are partly dependent
• Fully dependent users can be turned easily in bed so you can focus on other care roles
• Helps ensure patients remain comfortable while they rest
• Edges of the sheet are made of cotton and polyester to prevent sudden movement
• User can safely sit on the edge of the bed without sliding off
• Available in a wide range of sizes to suit patient needs

Sizing of the Etac Two Direction Maxi Base Sheet

Available in six different options to suit the needs of your patient and the size of their bed, the Etac SatinSheet 2D Maxi Base Sheet offers improved versatility to suit a wide range of user needs. To find out which size will suit your patient best, please refer to the guidelines below and click on the respective links if you require a different version of this product. It is advised that you measure the bed prior to choosing your base sheet.

Please note that this version of the base sheet is the only sheet that is fitted with corner straps. This is particularly suited to mattresses that are thicker in design.

Improve Independence or Make Care Tasks Easier

If you care for a number of different patients, finding the time in between other care tasks to turn bed-ridden, dependent users in bed is difficult, but this simple task can help to reduce the risk of decubitis ulcers. The SatinSheet 2D Maxi Base Sheet makes it easier for you to move your patients from side to side and can even allow patients to perform the action partially by themselves, which helps to enhance their level of independence. This keeps your clients safe and healthy and can even help free up your time for more involved care tasks.

Reduce Friction

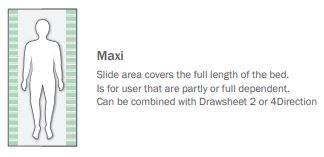

The Etac Two Direction Maxi Base Sheet is a traditional base sheet with a slide area that covers the full length of the bed. This means that the patient can simply lie directly on the sheet with little concern about their position. The sheet also helps reduce friction between the bedding and nightwear to prevent chafing and pain during the day while also reducing the risk of pressure sores and ulcers.

Care Instructions

The Etac 2D Two Direction Maxi Base Sheet is suitable for machine washing at 80°C. Please note that fabric softener or bleach should not be used on this product. The sheet can be tumble dried but should not be dry cleaned, and is suitable for ironing on a low heat.

Technical Specifications

• Fabric material: Cotton (55%) and polyester (45%)
• Satin material: Polyester
• Maximum user weight: 200kg

If your mobility has been compromised, turning around in bed can be a long and tiring process. The WendyLett Lined 200cm x 90cm Fitted Base Sheet Sliding Aid ROMP1641 helps you move around in bed safely and independently. Designed with a smooth and silky central section, the base sheet enables turning with minimal effort.

This version of the sheet provides a tailored fit. Featuring a drawstring, the base sheet is easier to fit over a single bed than most standard sheets. The sheet also features anti-slip material on either side of the sheet to prevent you from slipping off the bed during use.

Key Features and Benefits

• Prevents friction and shearing damage of the skin
• Helps reduce the risk of contracting pressure sores
• Allows one-directional sliding
• Tailored design with a drawstring for easier fitting
• Ideal for those with a base level of independence
• Suitable for use in hospitals or home and nursing care
• Anti-slip material prevents users sliding down or off the bed
• Enables patient turning with minimal effort
• Just as easy to wash as regular sheets
• Helps prevent pressure sores when paired with a pressure-relieving mattress

Perfect for Most Single Beds

The WendyLett Lined Base Sheet ROMP1641 is ideal for bed sizes with a width up to 90cm. This makes it suitable for use with most small or standard single beds.

Slides in One Direction

The WendyLett Base Sheet allows you to slide sideways without slipping down the bed. This is ideal if you're able to move fairly independently but you require a little help to do so.

Comfortable and Functional Material

Made of mixed material fabric, the WendyLett Lined Sheet is made from wonderfully smooth cotton and smart polyester. This mixture helps you remain comfortable while also improving the functionality and durability of the sheet. The quality of the fabric has been tested and monitored to ensure it remains strong and functional for long periods of time.

See the WendyLett System in Action

Find out how the WendyLett Base Sheet is used by watching the video below. Its smooth and silky central panel helps you turn with minimal effort, while its side panels prevent you from falling out of bed.

Care Instructions for the WendyLett Sliding Aid

The WendyLett Sliding Aid can be washed in 60°C to 90°C water and tumble-dried. The lined design of the sheet makes it easy to distinguish in the laundry.

How Often Should I Replace the Sheet?

As the sheet may be used more or less frequently depending on individual requirements, there is no guidance on when the sheet should be replaced. However, if you feel that the slide sheet is not providing the level of control as it once did, you may find that it's worth replacing it, especially in cases of continued heavy use.

Technical Specifications

• Dimensions (LxW): 200 x 90cm
• Bed Size (W): 90cm
• Sliding Surface: 70cm
• Maximum Weight: 47 stone (300kg)
